Q350

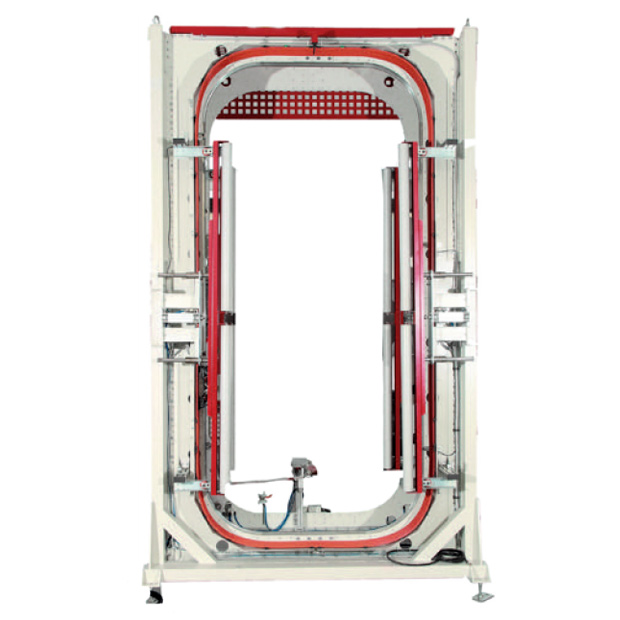

Horizontal wrapping machine for large productsQ350

Machine complete with:

Frame of the machine

  • Electro welded steel frame
  • Standard colors RAL 7035 fix parts – RAL 3002 mobile parts (other colors on request)
  • fixing of the machine on the concrete floor by foundations screws

Ring

  • rectangular frame made with welded and painted steel
  • spool carriage guide
  • pinion and rack for the spool carriage movement
  • size mm. 1400 x 3200 (W x H)
  • sliding contacts to power the spool carriage

Spool carriage

  • installed on the ring frame
  • complete with mechanical pre-stretch device
  • film mm. 250 or 500 (to define at the order)
  • brushless motor to move the spool carriage
  • no. 2 couples of wheels
  • adjustable speed of the spool carriage – max 30 RPM

Clamping and cutting unit

  • it is complete with a pneumatic device to clamp the film and to cut it with a toothed blade – movement as the scissors
  • the device goes up and down with a pneumatic cylinder

inlet and outlet pressure unit

  • on the enter and on the exit of the machine are fixed two side rolls to contain the product during the wrapping cycle
  • movement by pneumatic cylinder
